HLx Flow for Hello World MicroBlaze IP Integrator Example

HLx Flow for Hello World MicroBlaze IP Integrator Example#

Table of Contents#

Overview#

This design shares the same basic structure as the hello_world example.

In addition, the design includes a MicroBlaze (MB) processor with LMB memory connections and a MicroBlaze Debug Module (MDM) for debugging purposes. The MicroBlaze uses its Data Port (DP) Master to access the AXI BRAM, which is also accessible by the PCIS Master. Through BSCAN, the host’s XSDB program connects to the MDM, allowing it to issue commands to the MicroBlaze for reading and writing to the AXI BRAM.

The example program executes in the following sequence:

  • After reset, MicroBlaze (MB) begins executing from an ELF file that is loaded into LMB Memory.

  • MicroBlaze writes into the shared memory and writes into bit 0 of the GPIO. MicroBlaze polls for bit 1 and bit 0 to be asserted.

  • The host polls GPIO bit 0 for assertion. It writes a pattern into the shared memory (0xBEEF_DEAD) and writes into bit 1 of the GPIO.

  • Once MicroBlaze polls GPIO bit 1 and bit 0 assertion, it verifies the write pattern (0xBEEF_DEAD) from the host and writes to GPIO bit 2.

  • The polls GPIO bit2, bit1 and bit0 assertion. After that, the application competes successfully.

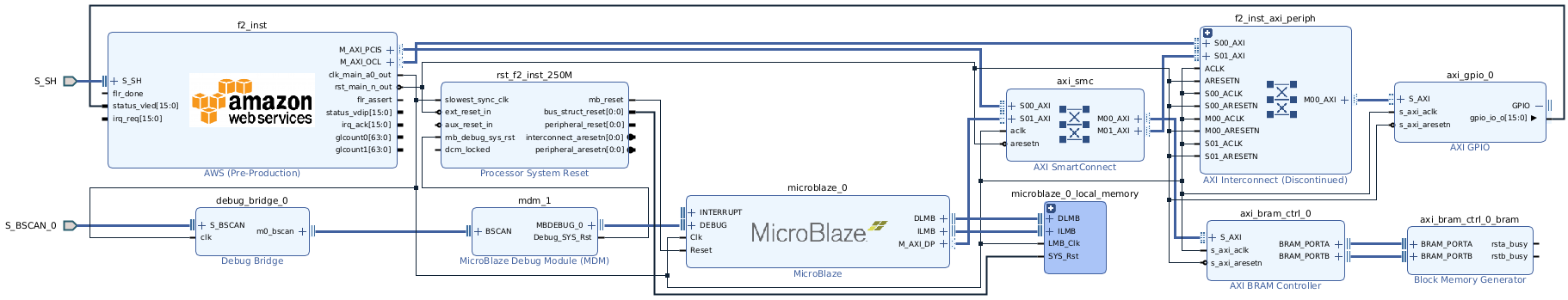

block-diagram-mb-hlx

Building and Testing Example#

Follow the common design steps specified in the IPI example design flow document to build and test this example on F2 instances.

MicroBlaze Debug Module (MCM)#

  • Before design implementation, Enable the BSCAN ports in CL by defining the BSCAN_EN macro. NOTE: This is required to use the MicroBlaze Debug Module (MDM) in the design.

    set_property verilog_define BSCAN_EN=1 [current_fileset]

BRAM Access through VJTAG and MDM
   xsdb% connect
   tcfchan#0
   xsdb% targets
     1  debug_bridge
        2  00000000
        3  00000000
        4  MicroBlaze Debug Module at USER1.2.2
           5  MicroBlaze #0 (Running)
   xsdb% target 5                    # <------- Change the target to MicroBlaze
   xsdb% mwr 0xC0000100 0xDEADBEEF   # <------- Test a memory write to the BRAM's start address
   xsdb% mrd 0xC0000100              # <------- Read to verify the test data has been stored in the BRAM successfully
   C0000100:   DEADBEEF
