HLx Flow for CDMA Test IP Integrator Example

HLx Flow for CDMA Test IP Integrator Example#

Table of Contents#

Overview#

This example design exercises the following data interfaces:

  • AXIL_OCL: Polls the AXI GPIO to which the DDR and HBM calibration done signals are connected

  • AXI_PCIS: Writes 1K data pattern to DDR source buffer

  • AXIL_OCL: Configures AXI CDMA for 1K DMA transfer from DDR to HBM and polls AXI CDMA status register to determine transfer completion

  • AXI_PCIS: Reads 1K from HBM destination buffer and compares against original data pattern

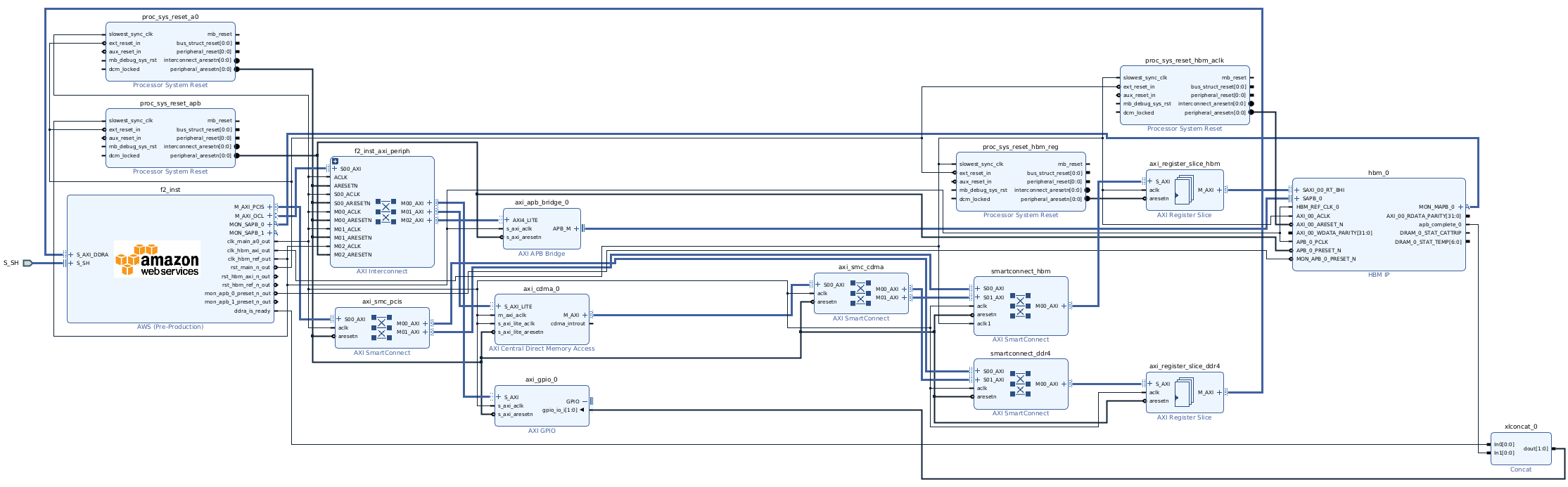

block-diagram

Building and Testing Example#

Follow the common design steps specified in the IPI example design flow document to build and test this example on F2 instances.
